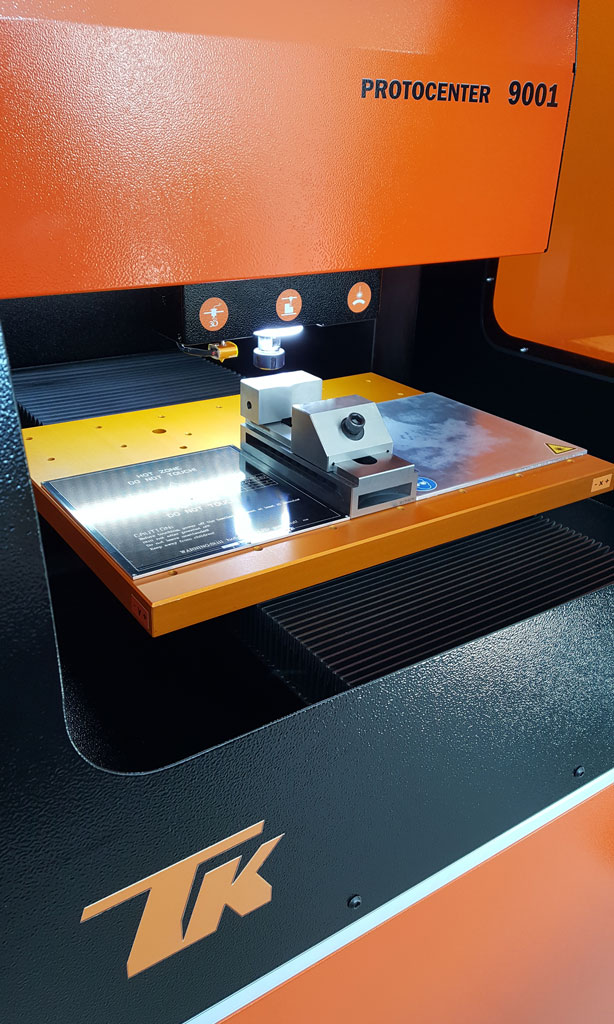

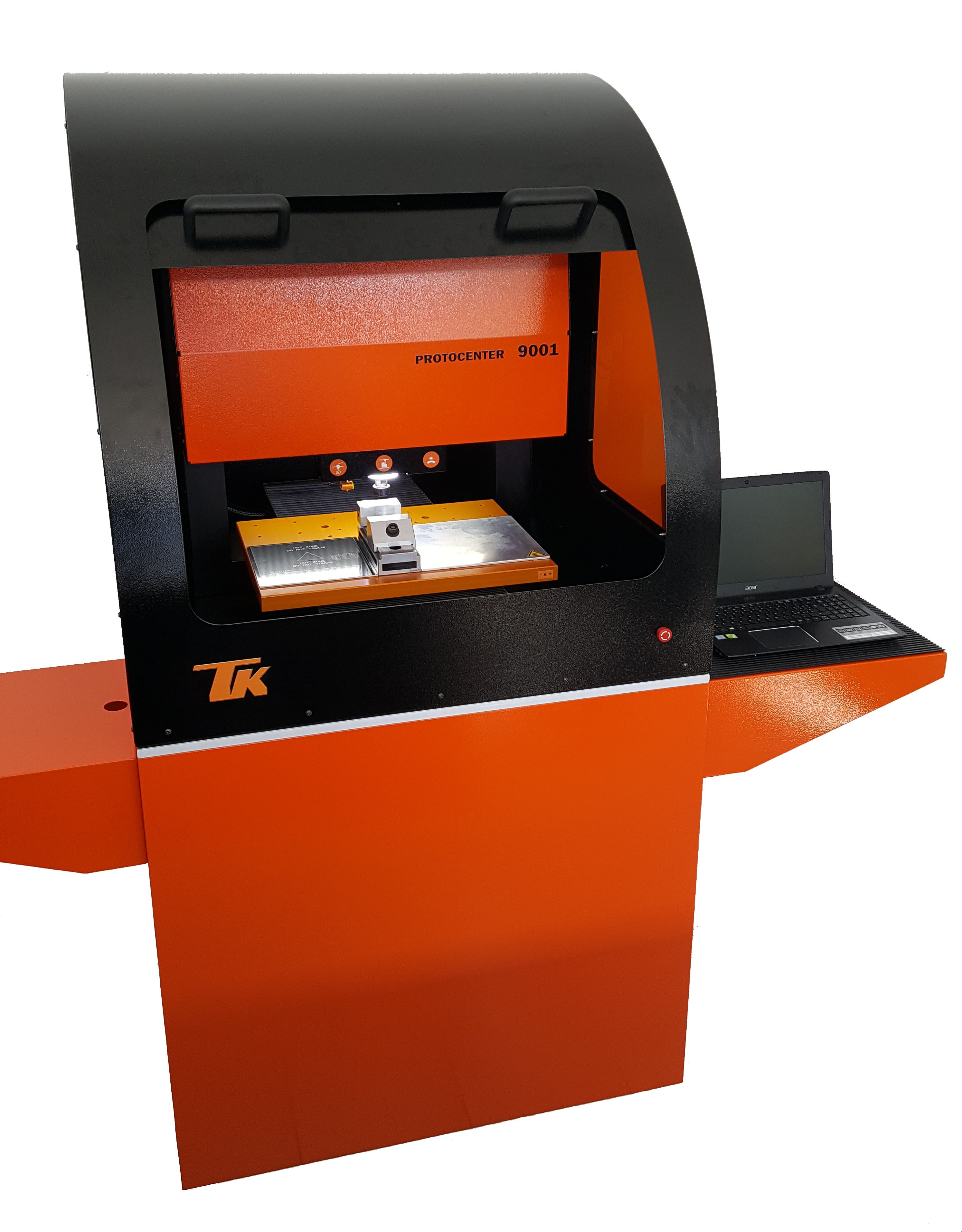

Multifunction all in one machine: CNC Mill, 3D Printer & Laser Engraver.
Introducing ProtoCenter 9001, the most professional multifunctional machine on the market. ProtoCenter 9001 is built with the highest quality.
The frame is completely CNC machined from 6082 aluminium blocks.
Ball-bearing linear guideways. Three 100W brushless motors. Intelligent servo drive for each axis. Resolution 0.0005mm. Without having to change anything manually, you can use sequentially the CNC mill, the laser engraver and the 3D printer.
- MILLING: 750W 18000rpm electro-spindle with ER20 (from 1 to 13mm), work area 460mm x 420mm x 150mm, works on steel, brass, aluminium, copper, plastic, wood.
- LASER: blue focusable laser (450nm), 15W of power, work area 380mm x 420mm. It can engrave: metal, plastic, organic leather.
- 3D PRINTER: heated work area 200mm x 200mm, extrusion speed up to 50mm/s, nozzle diameter 0.4mm, uses wires of PLA or ABS plastics.
WORKING AREAS
INDUSTRIAL
PROTOTYPE
ELECTRONIC
LABORATORY
PACKAGING
Ball-bearing guideways
100W brushless motors
CNC Handwheel
3 intelligent servo drivers
CNC ALU6082 frame
Brochure
Technical Specifications
CAD/CAM
Request price and information about Protocenter 9001
For more information about Protocenter9001 (distribution, sales, and technical info) please contact us.
